Specification

Applications

1.Warehousing: Pallet handling, stacking, loading/unloading
2.Logistics: Port terminals, freight yards, distribution centers
3.Manufacturing: Raw material transport, finished goods handling
4.Construction: Building material transport, site logistics
5.Agriculture: Grain handling, warehouse stacking, bulk cargo moving

Key Configurations

Engine: Isuzu diesel engine, stable & durable, low‑failure operation Hydraulic System: Precision‑controlled pumps and valves for smooth lifting and tilting Mast: 2‑stage mast, 4.5‑meter lifting height Cab: Ergonomic ROPS‑certified overhead guard, open cabin (air‑conditioning optional) Fork & Attachments: Standard fork length, optional side shifter, fork positioner or clamp attachments Control System: Instrument panel with hour meter, engine warning indicators, fault reminder, equipped with Toyota SAS stability safety system

heli 3tons

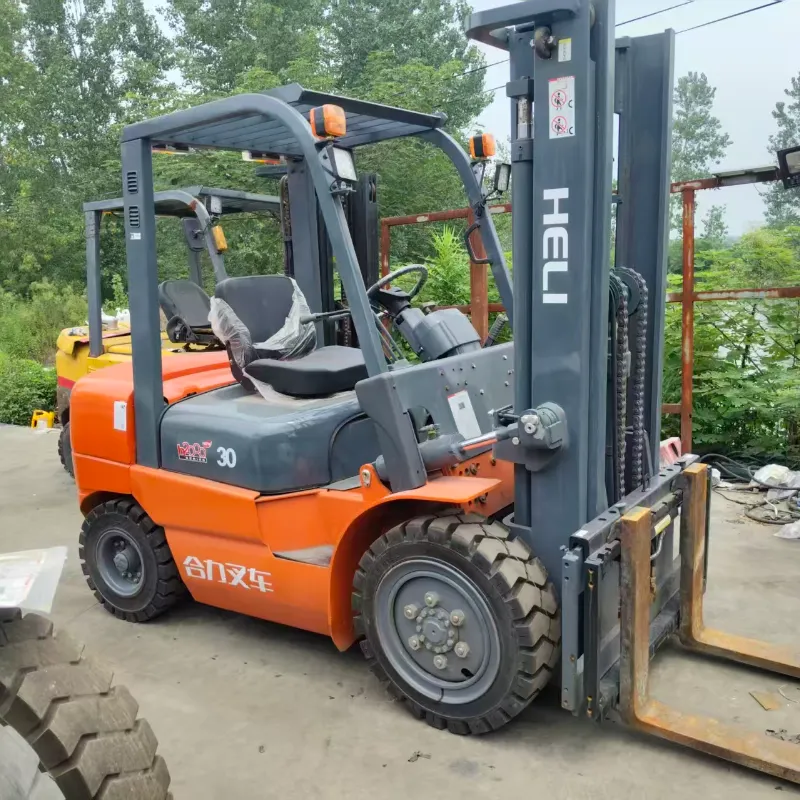

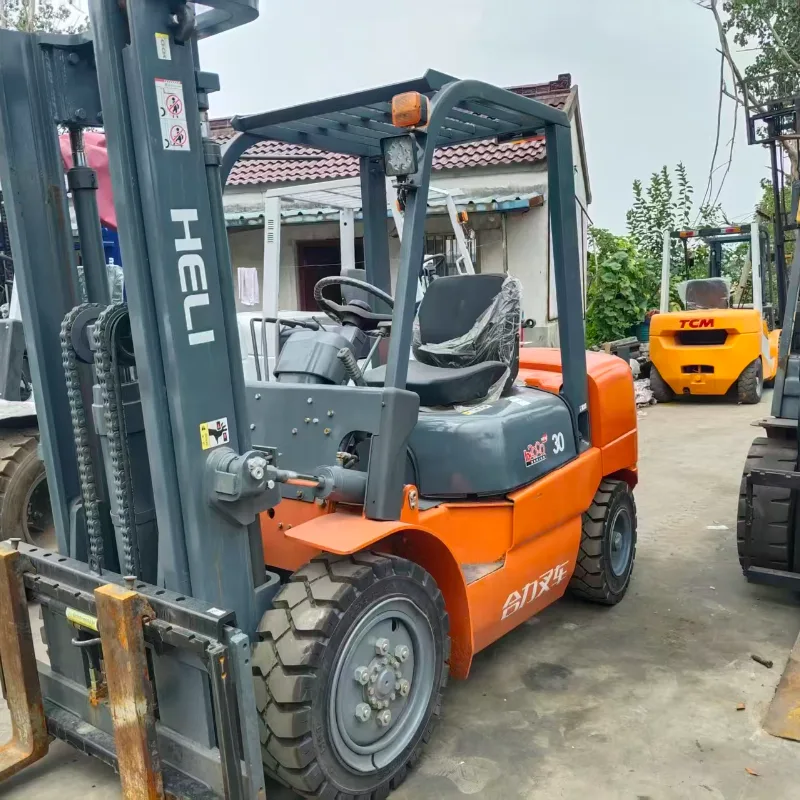

The HELI H2000‑30 is a popular 3‑ton counter‑balance diesel forklift. Equipped with integrated sideshifter, it greatly improves loading and unloading efficiency. Driven by durable Isuzu diesel engine, this unit delivers strong and steady power. It works perfectly for factories, warehouses and cargo yards. Optional triplex mast and solid tires can meet high‑stacking and heavy‑duty requirements.

Performance

• Rated capacity: 3000 kg @ 500 mm load center
• Standard max lift height: 3000 mm
• Optional lift height: 4500 mm triplex full‑free mast
• Mast tilt: Forward 6° / Backward 12°
• Travel speed (no‑load): 19 km/h
• Travel speed (loaded): 17 km/h
• Max climbing gradient: 20%
• Lifting speed (loaded): 360 mm/min
• Transmission: Automatic powershift
• Attachment: Built‑in sideshifter ±100 mm

Dimensions

• Overall length (without forks): 2710 mm
• Overall width: 1225 mm
• Overhead guard height: 2090 mm
• Minimum turning radius: 2400 mm
• Fork size: 1070 × 122 × 45 mm (L×W×T)

Power & Tires

• Engine: Isuzu diesel engine
• Rated power: 36.8 kW / 2600 rpm
• Fuel tank: 60 L

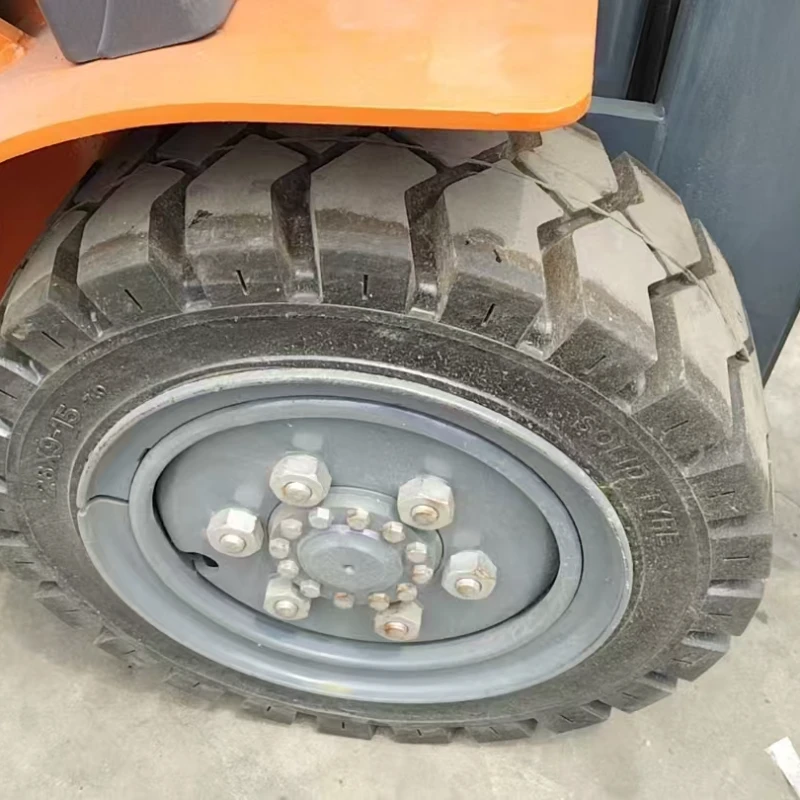

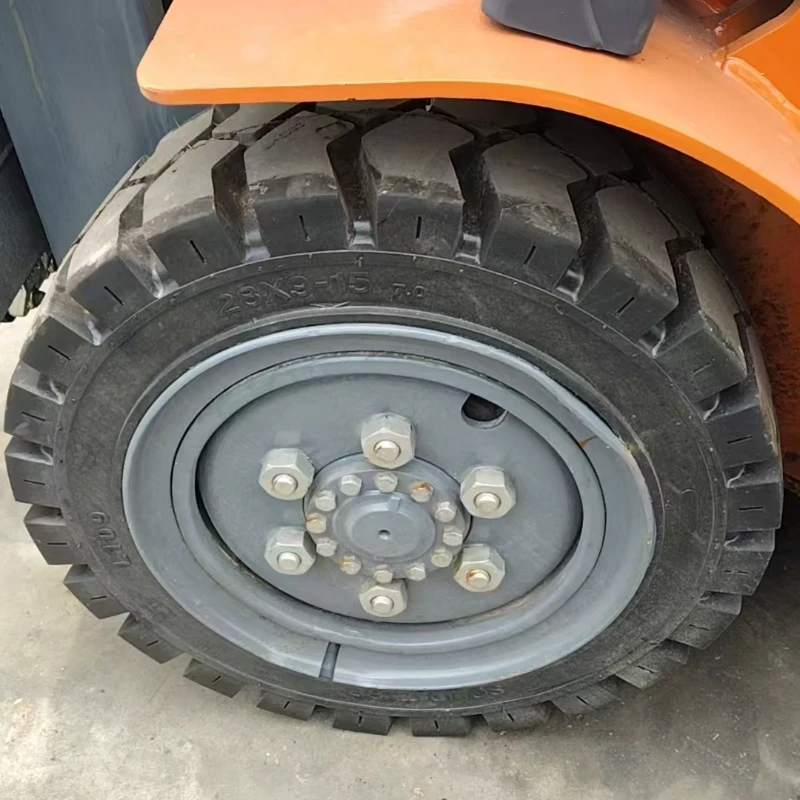

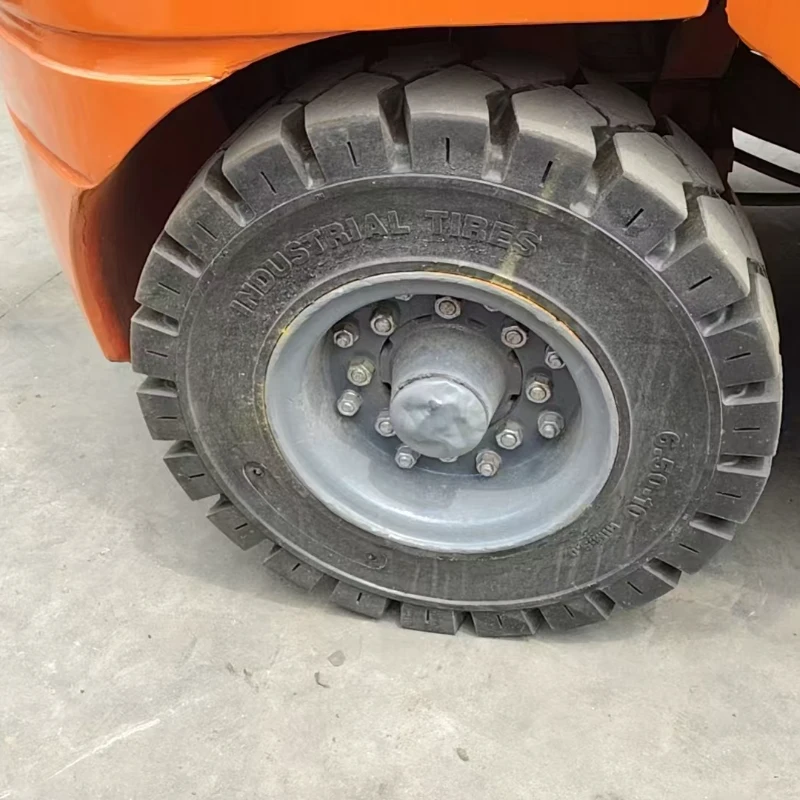

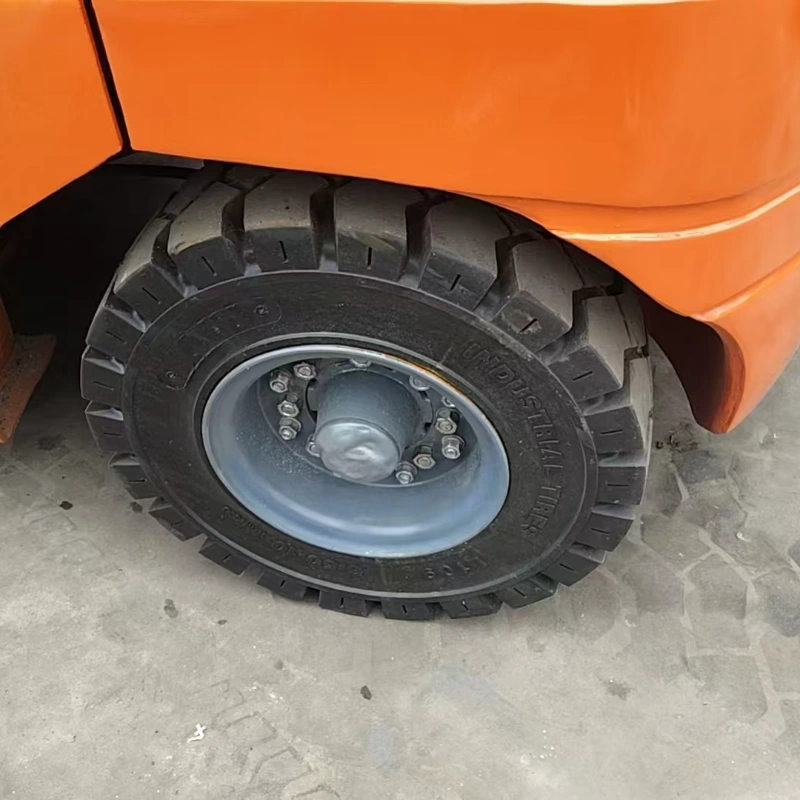

• Tires: Pneumatic tires, solid tires optional

Weight

• Service weight: Approx. 4350 kg

Note: Actual load capacity will decrease when fitted with high mast or extra attachments.

Pre-Delivery Inspection Items

1. Engine Related Systems Check for component contamination, brake fluid level and condition, battery status and other related parts.

2. Forklift Handling Equipment Inspect mast, lifting slings, lifting chains and other loading & unloading accessories.

3. Power Transmission System Inspect clutch pedal, transmission and torque converter.

4. Hydraulic System Inspect hydraulic tank, oil pipelines, hydraulic cylinders and related components.

5. Running Gear Equipment Inspect tires, wheel hubs and other walking parts.

6. Braking System Inspect service brakes and parking brakes.

7. Control System Inspect steering wheel, power steering system and steering linkage.

8. Safety Devices Inspect safety helmets, working lights, instrument panels and other safety accessories.

9. Comprehensive Inspection & Cleaning Perform full-scale equipment inspection and overall cleaning.
