Applications

1.Warehousing: Pallet handling, stacking, loading/unloading
2.Logistics: Port terminals, freight yards, distribution centers
3.Manufacturing: Raw material transport, finished goods handling
4.Construction: Building material transport, site logistics
5.Agriculture: Grain handling, warehouse stacking, bulk cargo moving

Basic Info

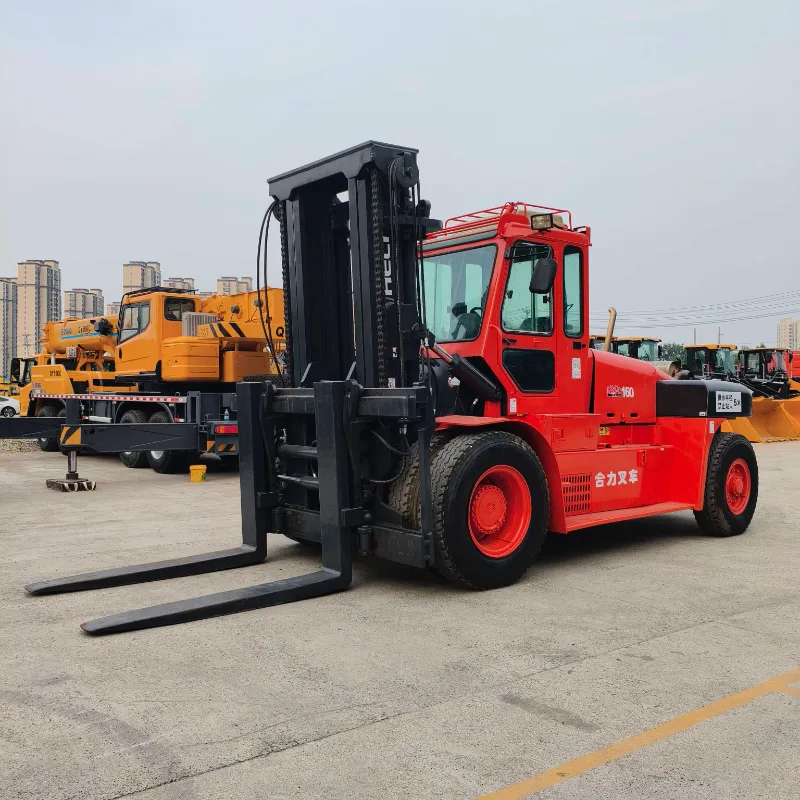

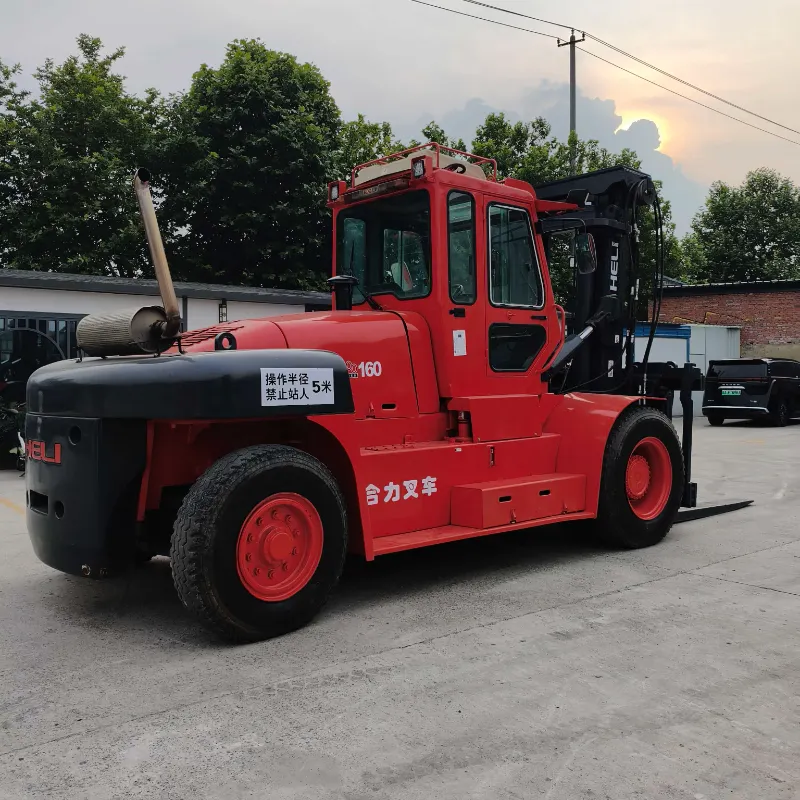

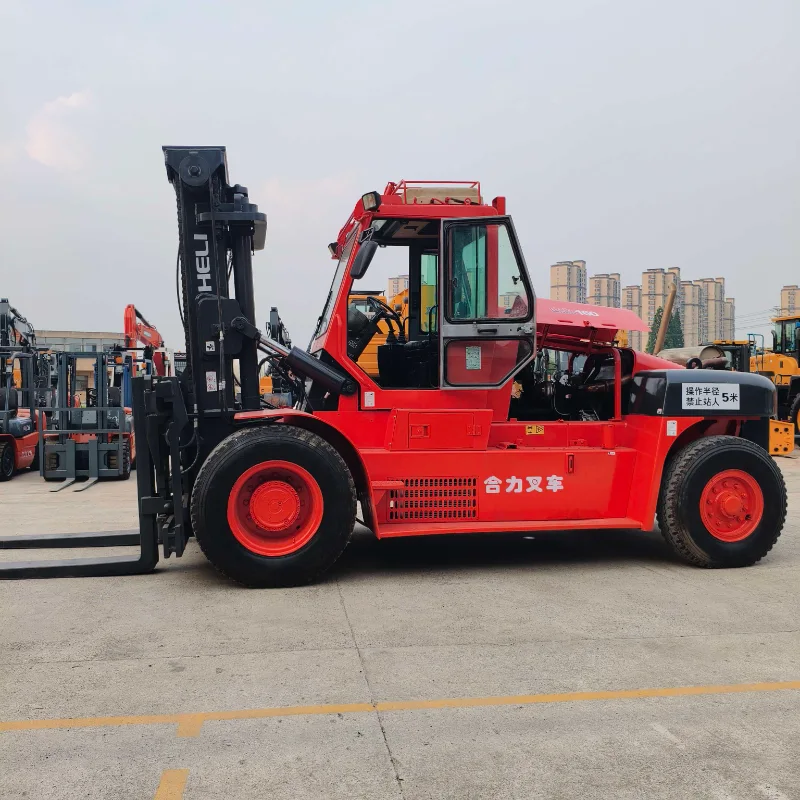

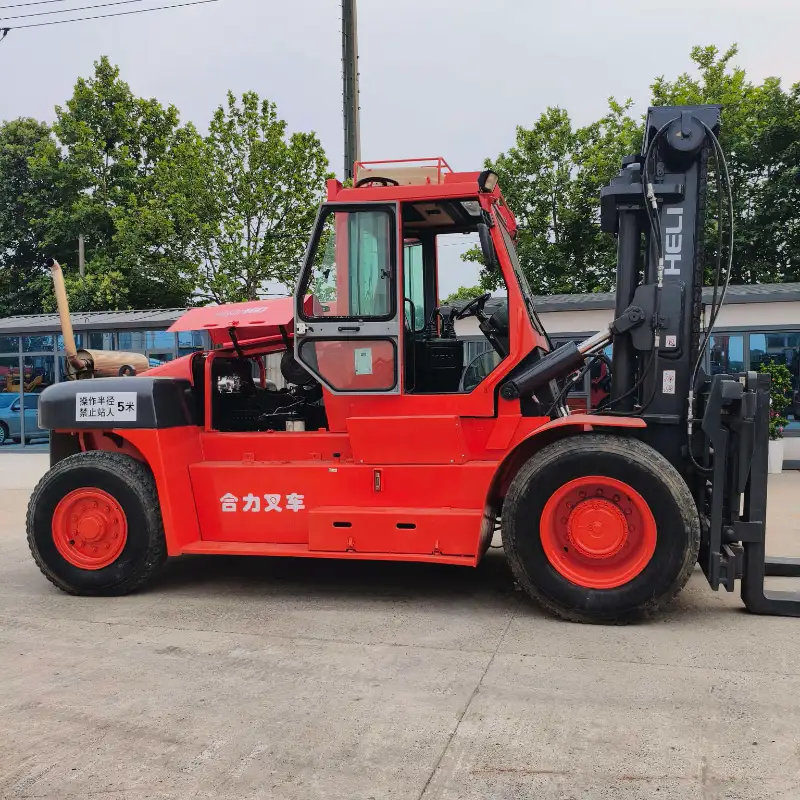

• Brand: HELI
• Model: CPCD160
• Type: Heavy‑duty diesel counterbalance forklift
• Rated capacity: 16 000 kg (16 ton)
• Service weight (overall weight): 23500 kg (23.5 ton), range 23000‑24700 kg (varies with mast & attachments)
• Power source: Cummins diesel engine

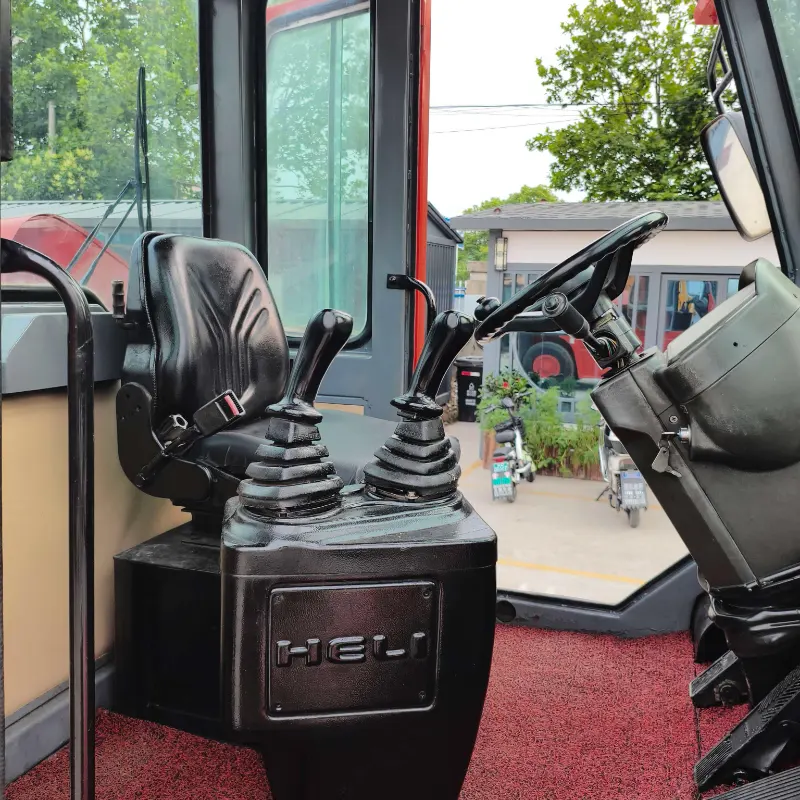

• Driving mode: Sit‑down operator
• Working radius: 5 m

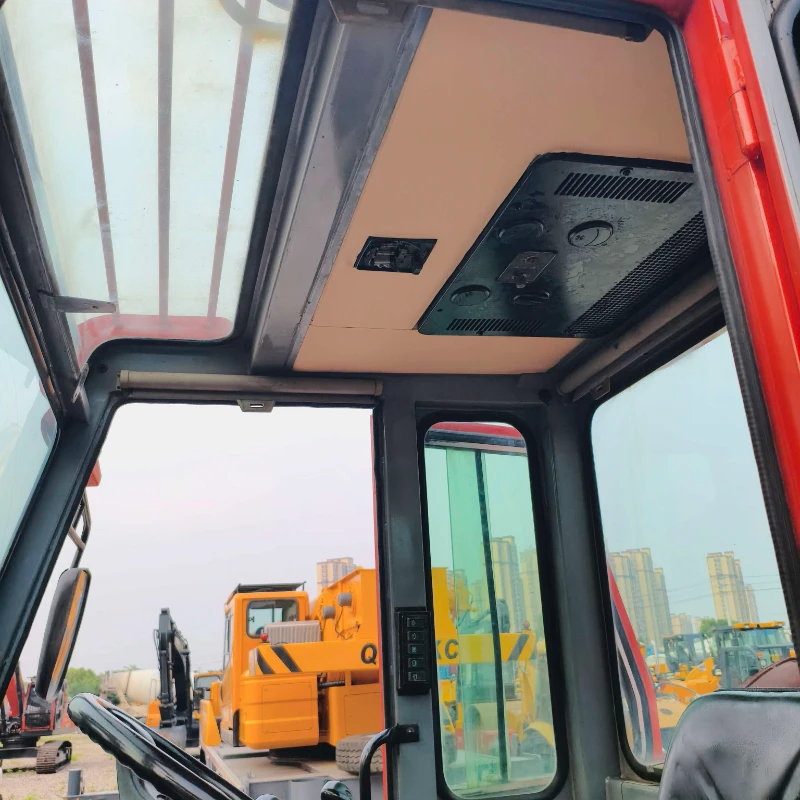

• Cabin: Fully enclosed air‑conditioned driver cabin
• Application scenarios: Port terminals, logistics yards, steel mills, large warehouses, heavy cargo stacking & loading‑unloading

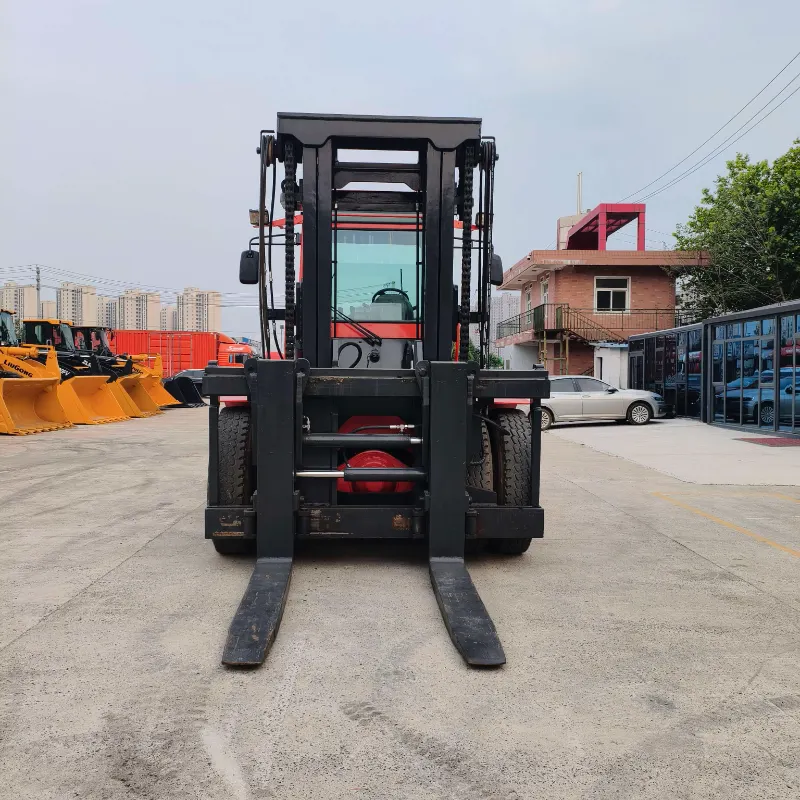

Lifting & Mast

• Standard lifting height: 3000 mm
• Fork carriage: Side shift function equipped
• Fork size: Suitable for heavy‑duty thick forks
• Max turning radius: ~4800 mm

Powertrain & Chassis

• Engine: Cummins industrial diesel engine, high torque output, reliable performance for heavy‑load continuous operation
• Transmission: Hydraulic transmission
• Solid heavy‑duty chassis, reinforced frame for long‑time high‑intensity operation
• Large‑size heavy‑duty tires for rough ground adaptability

Machine Condition

• Used unit, well‑maintained
• Cummins engine in good condition, no major disassembly record
• Hydraulic system works smoothly, no obvious oil leakage
• Ready for inspection and immediate shipment

Overall Dimensions (Reference)

• Overall length (without forks): ~5600 mm
• Overall width: ~2450 mm
• Overall height (mast lowered): ~3100 mm

Note: Above data is standard reference, actual value subject to machine nameplate.

Pre-Delivery Inspection Items

1. Engine Related Systems Check for component contamination, brake fluid level and condition, battery status and other related parts.

2. Forklift Handling Equipment Inspect mast, lifting slings, lifting chains and other loading & unloading accessories.

3. Power Transmission System Inspect clutch pedal, transmission and torque converter.

4. Hydraulic System Inspect hydraulic tank, oil pipelines, hydraulic cylinders and related components.

5. Running Gear Equipment Inspect tires, wheel hubs and other walking parts.

6. Braking System Inspect service brakes and parking brakes.

7. Control System Inspect steering wheel, power steering system and steering linkage.

8. Safety Devices Inspect safety helmets, working lights, instrument panels and other safety accessories.

9. Comprehensive Inspection & Cleaning Perform full-scale equipment inspection and overall cleaning.
