Specification

Applications
1.Warehousing: Pallet handling, stacking, loading/unloading
2.Logistics: Port terminals, freight yards, distribution centers
3.Manufacturing: Raw material transport, finished goods handling
4.Construction: Building material transport, site logistics
5.Agriculture: Grain handling, warehouse stacking, bulk cargo moving

Key ConfigurationsEngine: Toyota original high‑torque diesel engine, stable & durable, low‑failure operation
Hydraulic System: Precision‑controlled pumps and valves for smooth lifting and tilting

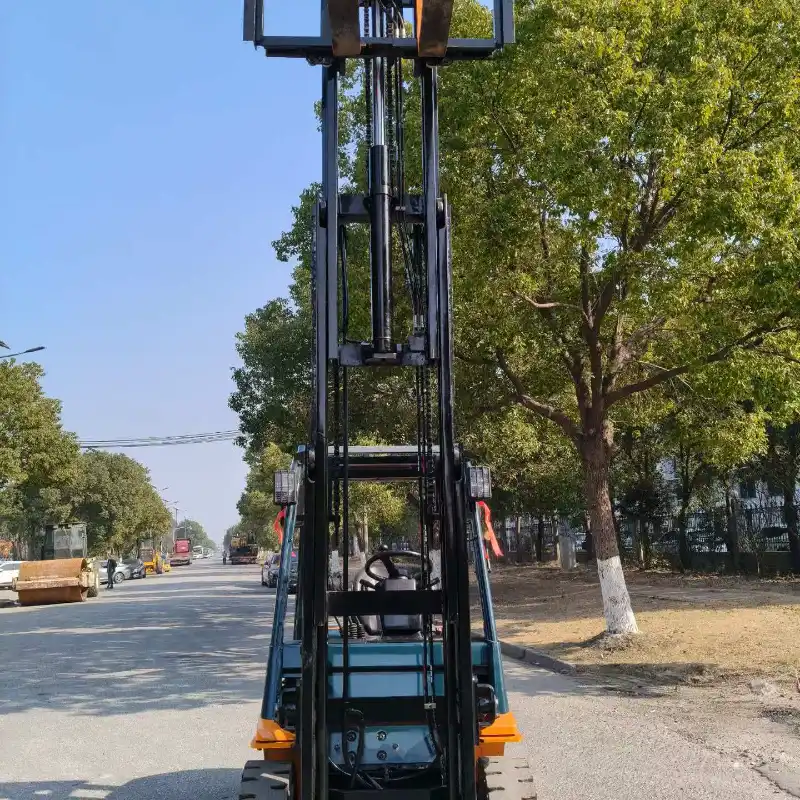

Mast: 2‑stage mast, standard 3‑meter lifting height, optional 4.5m/6m for upgrade
Cab: Ergonomic ROPS‑certified overhead guard, open cabin (air‑conditioning optional)

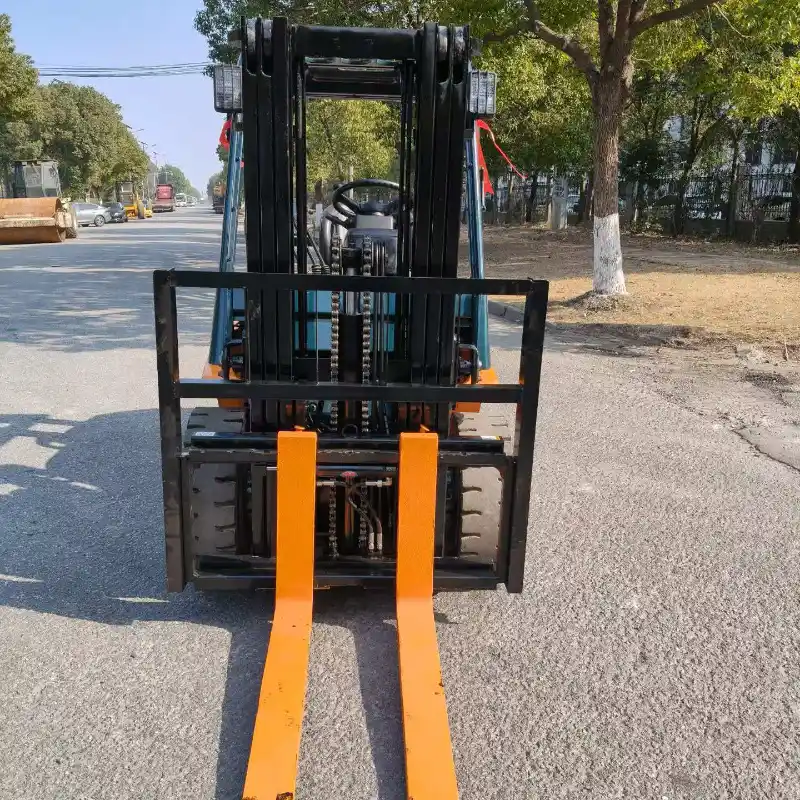

Fork & Attachments: Standard fork length, optional side shifter, fork positioner or clamp attachments
Control System: Instrument panel with hour meter, engine warning indicators, fault reminder, equipped with Toyota SAS stability safety system

Performance Parameters

• Rated capacity: 5000 kg
• Load center: 600 mm
• Standard max lift height: 3000 mm (optional 3700‑6000 mm 2‑stage / 3‑stage mast)
• Travel speed (no‑load): 24 km/h
• Mast tilt: Forward 6° / Backward 12°
• Transmission: Powershift automatic transmission
• Safety system: SAS active stability system

Overall Dimensions

• Overall length (to fork vertical face): 3170 mm
• Overall width: 1450 mm
• Overhead guard height: 2300 mm (low‑profile overhead guard 2200 mm for container access optional)
• Minimum outer turning radius: 2810 mm
• Fork dimension: 1520 × 150 × 65 mm (L × W × T) (side‑shifter optional)

Power System (7FD50N Diesel)

• Engine model: 14Z‑II inline 6‑cylinder diesel engine
• Displacement: 5204 cc
• Tires: Pneumatic / solid tires optional

Pre-Delivery Inspection Items

1. Engine Related Systems Check for component contamination, brake fluid level and condition, battery status and other related parts.

2. Forklift Handling Equipment Inspect mast, lifting slings, lifting chains and other loading & unloading accessories.

3. Power Transmission System Inspect clutch pedal, transmission and torque converter.

4. Hydraulic System Inspect hydraulic tank, oil pipelines, hydraulic cylinders and related components.

5. Running Gear Equipment Inspect tires, wheel hubs and other walking parts.

6. Braking System Inspect service brakes and parking brakes.

7. Control System Inspect steering wheel, power steering system and steering linkage.

8. Safety Devices Inspect safety helmets, working lights, instrument panels and other safety accessories.

9. Comprehensive Inspection & Cleaning Perform full-scale equipment inspection and overall cleaning.
