Category	Parameter	Specification
Basic Information	Brand	Mitsubishi
	Model	16‑ton heavy‑duty counterbalance forklift
	Rated load capacity	16000 kg (16 Ton)
	Service weight	22800 kg (22.8 Ton) (22200‑23600 kg, varies with mast & attachments)
	Power source	Original Mitsubishi industrial diesel engine
	Driving mode	Sit‑on operator
	Cabin type	Open overhead guard (no enclosed cabin)
	Application	Port, logistics yard, factory, steel stockyard, heavy cargo stacking & loading‑unloading
Mast & Lifting System	Standard lifting height	3000 mm
	Fork carriage	Equipped with side‑shift function
	Fork	Heavy‑duty thick forks for 16‑ton load
	Minimum turning radius	~4700 mm
Power & Chassis	Engine	Mitsubishi diesel engine, high torque, stable heavy‑load performance
	Transmission	Hydraulic automatic transmission
	Frame	Heavy‑duty reinforced original chassis
	Tires	Large‑size heavy‑duty solid tires, adapt to various working ground
Equipment Condition	Machine status	Used forklift, well‑maintained
	Engine status	Good working condition, no major disassembly
	Hydraulic system	Smooth operation, no obvious oil leakage
	Inspection	Support third‑party pre‑shipment inspection
Overall Dimension	Overall length (without forks)	~5400 mm
	Overall width	~2400 mm
	Overall height (mast lowered)	~3050 mm

Basic Information

Brand: Mitsubishi
Rated load capacity: 16000 kg (16 Ton)
Service weight: 22800 kg (22.8 Ton), range 22200‑23600 kg(depends on mast & attachments)
Power source: Original Mitsubishi industrial diesel engine
Operation: Sit‑on driving
Cabin: Open overhead guard
Application: Port, logistics yard, factory, steel yard, heavy cargo stacking & loading‑unloading

Mast & Lifting System

Standard lifting height: 3000 mm
Fork carriage: With side‑shift function
Fork: Heavy‑duty thick forks
Min turning radius: ~4700 mm

Power & Chassis

Engine: Mitsubishi diesel engine, high‑torque output
Transmission: Hydraulic automatic transmission
Chassis: Reinforced original heavy‑duty frame
Tires: Large heavy‑duty solid tires

Equipment Condition

Condition: Used, well‑maintained
Engine: Good working order, no major disassembly
Hydraulic system: Smooth action, no obvious oil leakage
Inspection: Support third‑party pre‑shipment inspection

Overall Dimensions

Overall length (without forks): ~5400 mm
Overall width: ~2400 mm
Overall height (mast lowered): ~3050 mm

Note: Data for reference only, actual value subject to machine nameplate.

Applications

1.Warehousing: Pallet handling, stacking, loading/unloading
2.Logistics: Port terminals, freight yards, distribution centers
3.Manufacturing: Raw material transport, finished goods handling
4.Construction: Building material transport, site logistics
5.Agriculture: Grain handling, warehouse stacking, bulk cargo moving

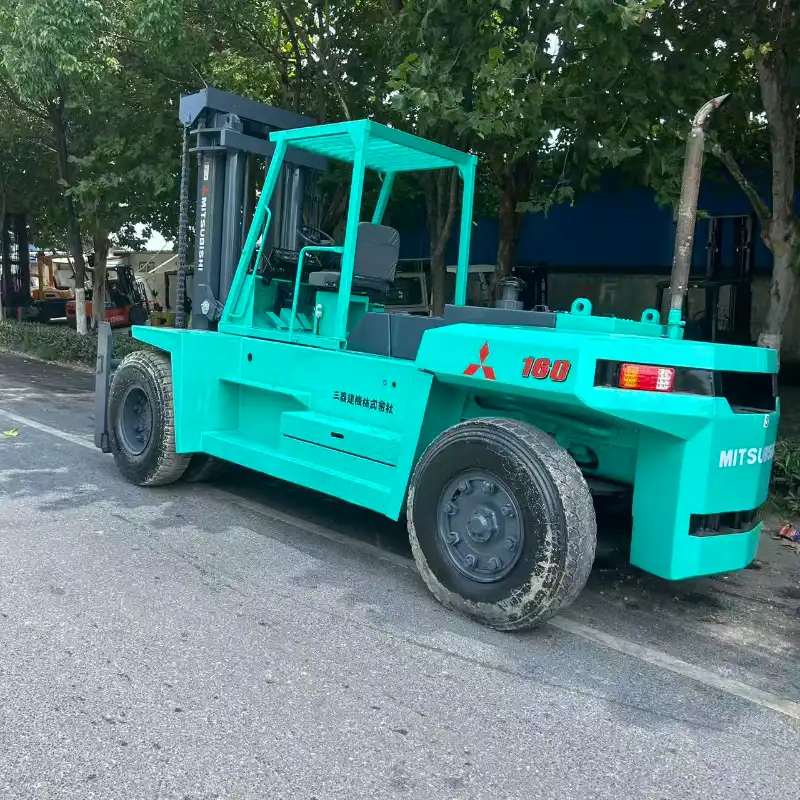

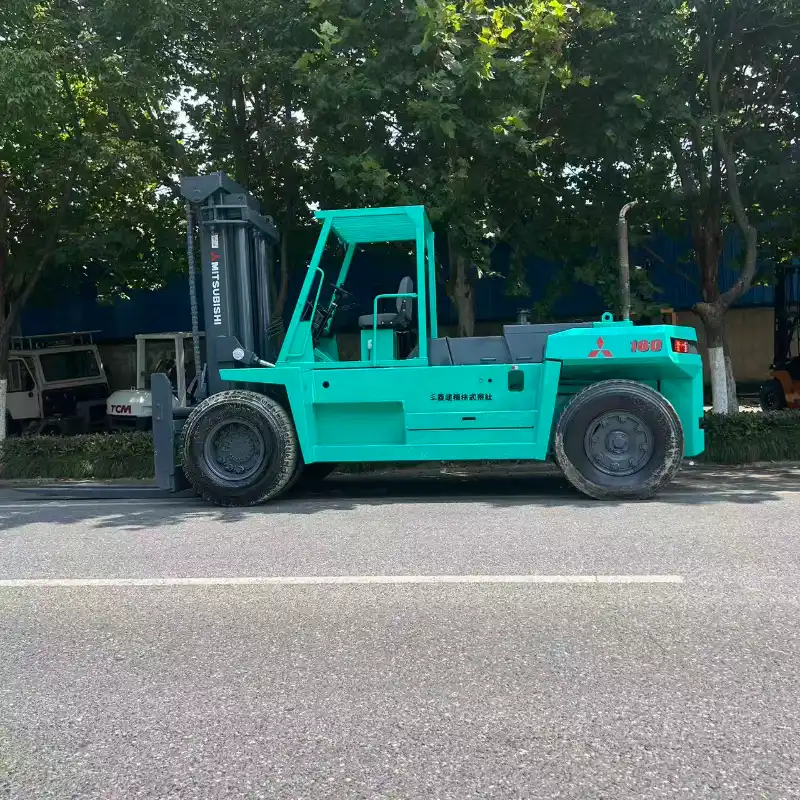

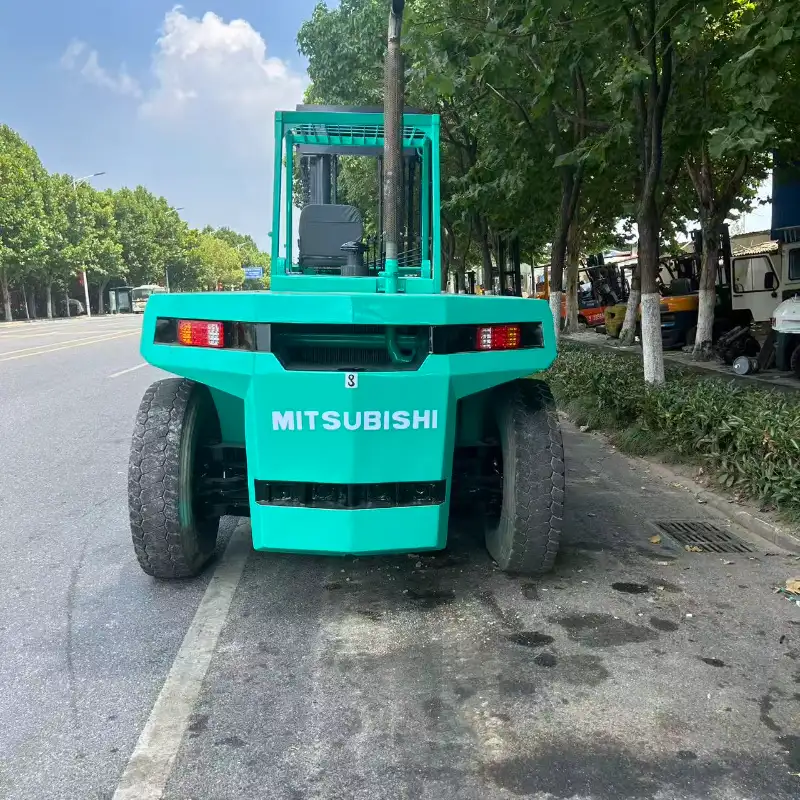

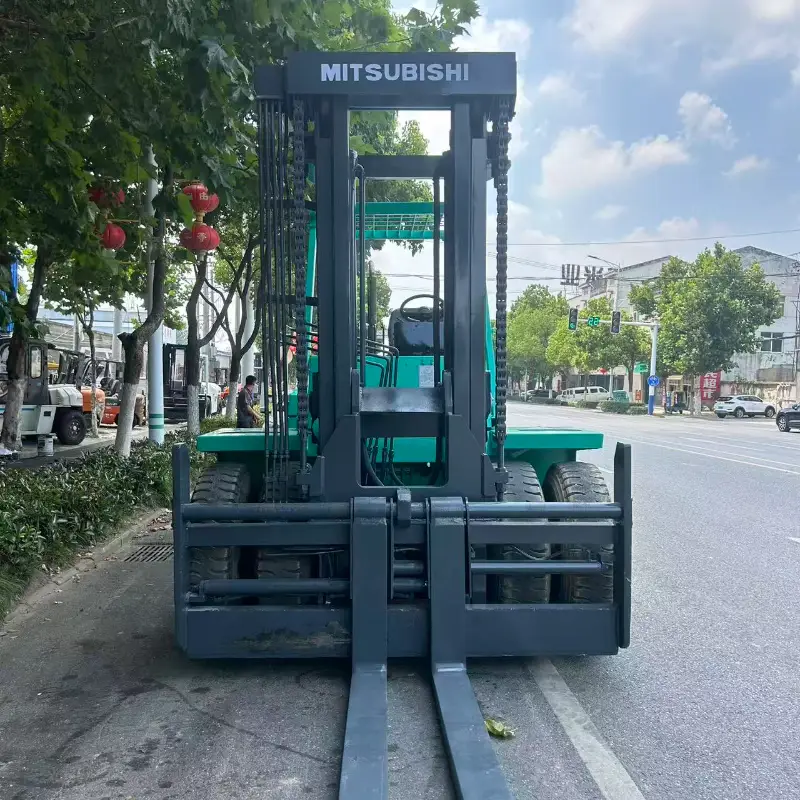

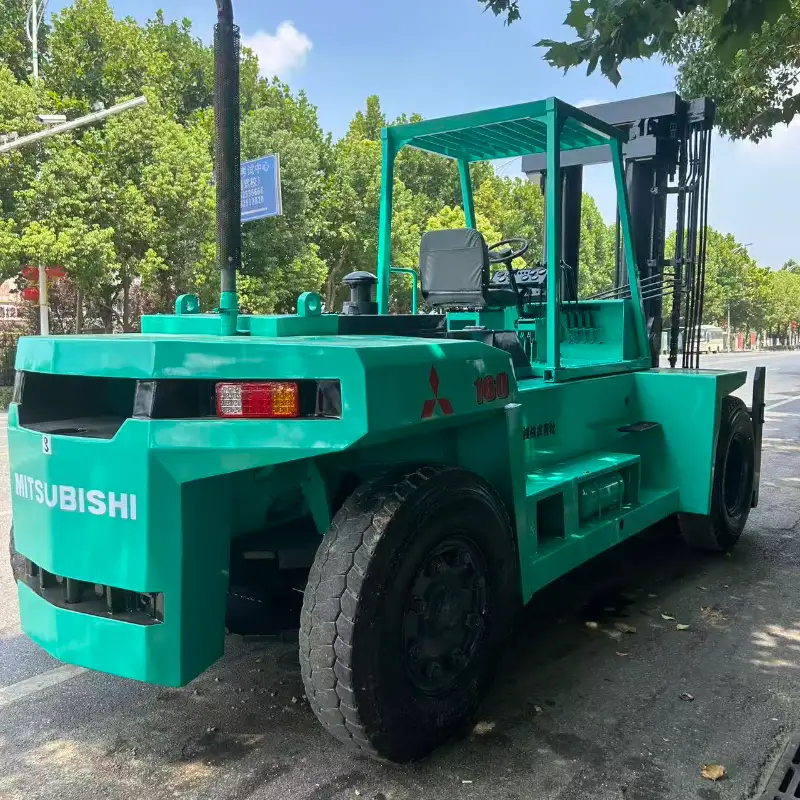

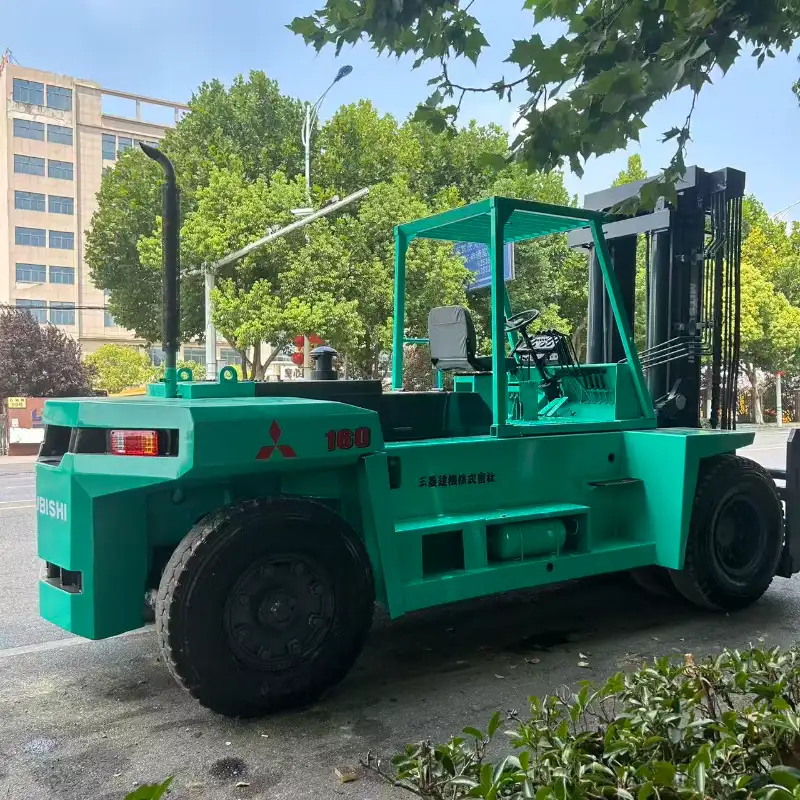

Used Mitsubishi 16T Heavy Diesel Counterbalance Forklift

Pre-Delivery Inspection Items

1. Engine Related Systems Check for component contamination, brake fluid level and condition, battery status and other related parts.

2. Forklift Handling Equipment Inspect mast, lifting slings, lifting chains and other loading & unloading accessories.

3. Power Transmission System Inspect clutch pedal, transmission and torque converter.

4. Hydraulic System Inspect hydraulic tank, oil pipelines, hydraulic cylinders and related components.

5. Running Gear Equipment Inspect tires, wheel hubs and other walking parts.

6. Braking System Inspect service brakes and parking brakes.

7. Control System Inspect steering wheel, power steering system and steering linkage.

8. Safety Devices Inspect safety helmets, working lights, instrument panels and other safety accessories.

9. Comprehensive Inspection & Cleaning Perform full-scale equipment inspection and overall cleaning.
